Note:
Two factors will show if your vehicle is OBD II compliant:
1. There will be an OBD II connector, and
2. There will be a note on a sticker or nameplate under the hood stating "OBD II compliant" or "OBD II Certified". Very necessary. If no OBD2 Certification, it won't work.
Product Feature
1. Automatic adaptation car models, and can apply for cars in line with OBD II or EUOBD (onboard automatic diagnostic system).Plug and Play.
2. 3 inch screen and high-definition display
3. Multi-color design makes the screen more abundant and easier to read
4. The use of nano-technology to eliminate unwanted reflections and can make display information more sharper.
5. Display rich content: speed, engine speed, water temperature, battery voltage, fuel consumption,low voltage alarm, high temperature alarm, speed alarm,free switching between kilometer and mile,free switching between C and F degree.
6. Auto power on and off with vehicle started and shutdown, effective protection of the car battery; while retaining the manual switch mode, and more easy to control HUD.
7. Automatic and manual brightness adjustment mode, driving without sunshine.

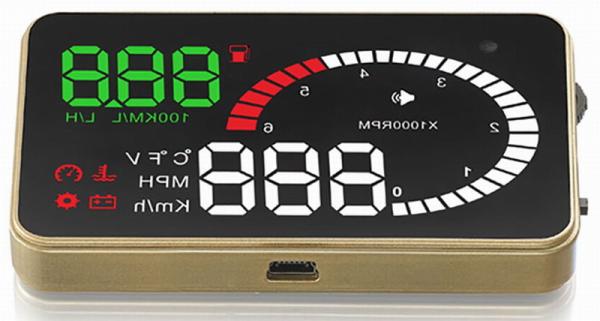

Main function
1. Light sensors: Brightness can be changed with the change of the outside brightness.
2. Rotation speed: Indicates the rotating status of the engine,1 means 1000 / min.
3. Buzzer mark.
4. Fuel consumption mark.
5. Fuel consumption: Instantaneous fuel consumption and average fuel consumption.
6. Fuel consumption unit: L / H.
7. Fuel consumption unit: L / 100km.
8. Alarm icon: Water temperature alarm, battery voltage alarm and over speed alarm.
9. Unit mark: V - Voltage, MPH - Mile per hour, KM / H - kilometer per hour.
10. Multi-function display: Speed, voltage, water temperature.
11. Rotation speed: Indicates the rotating status of the engine and the scale measured represents the spee
Technical parameter:
Environment temperature: - 40 ° C - +80 ° C
Barometric press:86-106KPa
Relative humidity:10%-95%
Environment voice:<=60dB
Alarm of sound level:>=30dB(A)
Work voltage:9V~16Vdc(12Vdc/400mA)
Package Include:
1x X6 OBD II Head up display
1x OBDII Cable (Approx 1.45m )
1x Non-slip Mat
1x Reflection Film
1x User Manual
